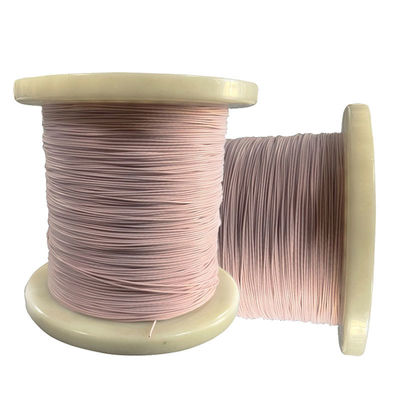

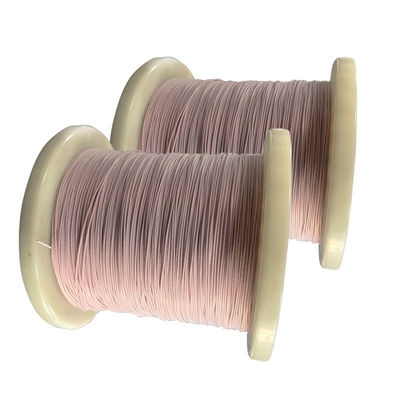

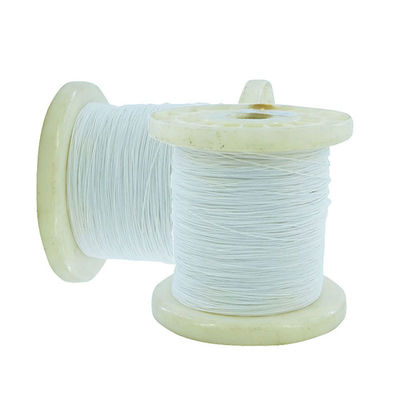

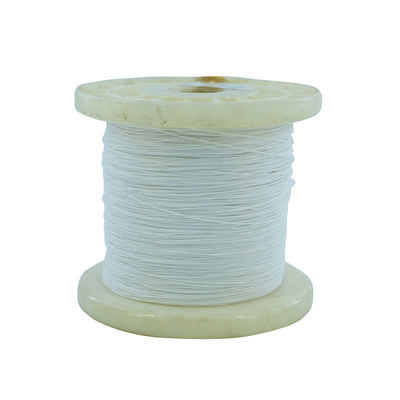

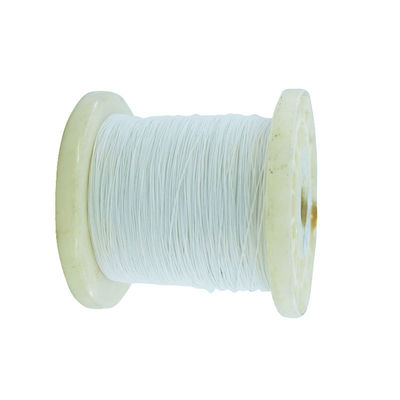

19/0.12mm Bare Copper PTFE Insulated Wire with High Temperature Resistance for Demanding Applications

500
MOQ
19/0.12mm Bare Copper PTFE Insulated Wire with High Temperature Resistance for Demanding Applications
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
ماده هادی: مس لخت یا مس روکش شده نقره ای
ماده عایق: PTFE
ولتاژ دارای امتیاز: 600 ولت یا کمتر
دمای کار: -60℃~+200℃
نوع هادی: رشته یا جامد
شماره اصلی: هسته تک هسته یا چندگانه
سنجش سیم: 19/0.12 میلی متر
سطح مقطع: 0.12mm²
حداکثر OD: 0.85 میلی متر
وزن مرجع: 1.66 کیلوگرم در کیلومتر
گزینه های رنگی: سفید ، آبی ، قرمز ، سیاه ، زرد ، زرد ، سبز ، شفاف ، زرد/سبز
مهار کننده شعله: بله
مقاومت نفتی: بله
مقاومت در برابر اسید: قوی
مقاومت قلیایی: قوی
برجسته کردن:

19/0.12mm PTFE Insulated Wire,Bare Copper PTFE Insulated Wire,High Temperature Resistance PTFE Insulated Wire

,

Bare Copper PTFE Insulated Wire

,

High Temperature Resistance PTFE Insulated Wire
اطلاعات اولیه
محل منبع: هونان ، چین
نام تجاری: Sanco Cable
شماره مدل: AFR-200
پرداخت
توضیحات محصول

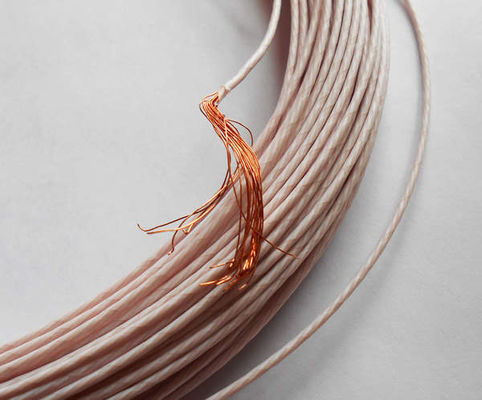

19/0.12mm Bare Copper PTFE Film Wrapped Wire
PTFE wrapping wire is a type of electrical wire insulated with polytetrafluoroethylene (PTFE), a high-performance synthetic fluoropolymer. PTFE offers excellent thermal and chemical resistance, making it ideal for demanding applications in aerospace, medical devices, and electronics. The insulation provides protection against heat, moisture, and chemicals while maintaining flexibility for easy handling and installation.
Key Features
  • Excellent corrosion resistance
  • Resistant to oils, strong acids, alkalis, and oxidants
  • Superior electrical insulation properties
  • High voltage resistance and moisture protection
  • Flame-retardant and anti-aging
  • Long service life
Technical Specifications
Parameter Specification
Conductor Materials Silver Plated Copper or Bare Copper
Conductor Type Stranded or Solid
Insulation PTFE, FEP, or PFA
Number of Cores Single Core or Multiple Cores
Size Range 0.05~4mm²
Rated Voltage 600V or Below
Temperature Range -80°C to +200°C
Available Colors White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
19/0.12mm Bare Copper PTFE Insulated Wire with High Temperature Resistance for Demanding Applications 0
Product Types
Type Description
AFR-200 Bare Copper wire conductor PTFE film insulated lead wire
AFR-250 Silver plated copper wire conductor PTFE film insulated lead wire
AFP Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1 Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200 Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250 Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire
19/0.12mm Bare Copper PTFE Insulated Wire with High Temperature Resistance for Demanding Applications 1
Detailed Specifications
Wire Gauge Cross-section Conductor Structure Max. OD (mm) Reference Weight (kg/km)
36AWG 0.013 7/0.05 0.57 0.44
32AWG 0.035 7/0.08 0.67 0.73
- 0.05 10/0.08 0.72 0.91
- 0.07 14/0.08 0.75 1.16
- 0.1 21/0.08 0.85 1.57
26AWG 0.12 24/0.08 0.85 1.66
- 0.14/0.15 30/0.08 0.9 2.07
24AWG 0.2 42/0.08 1.0 2.72
- 0.25 56/0.08 1.1 3.47
22AWG 0.3 62/0.08 1.18 4.2
- 0.35 75/0.08 1.2 4.7
20AWG 0.5 63/0.1 1.45 5.36
- 0.75/0.80 91/0.1 1.69 8.19
18AWG 1 56/0.15 1.95 10.9
Note: Extruded PTFE cable core numbers and specifications can be customized according to customer requirements.
About Our Company
Xiangtan Shenzhou Special Cable Co., LTD is a leading wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing.
Our Capabilities
  • Specialized in high temperature wires: PTFE, FEP, PFA, ETFE
  • Advanced production facilities and integrated management system
  • Collaboration with universities and research institutes
  • Custom cable solutions available
  • Competitive pricing without compromising quality
19/0.12mm Bare Copper PTFE Insulated Wire with High Temperature Resistance for Demanding Applications 2
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specializing in research, development and sales of military and consumer cable wire and cable compound. Our company is located in Hunan Province, China.
Q: What is your company's strengths?
A: We are a stable wire and cable supplier for China's aerospace and military with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing.
Q: How do you guarantee your product quality?
A: Quality is our top priority. We implement strict quality control measures throughout the entire process - from design and materials procurement to manufacturing, semi-finished product testing, and final inspection.
Q: What's the warranty of your products?
A: We provide a 1-year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
Q: How can I get samples?
A: We can prepare sample orders for you. For small quantities that are available in stock, we can provide samples free of charge (customer pays shipping).
