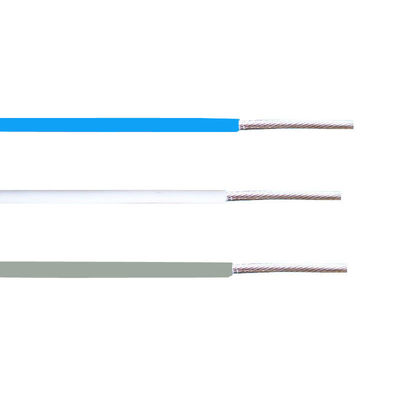

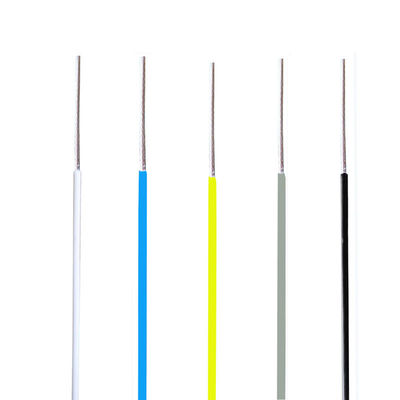

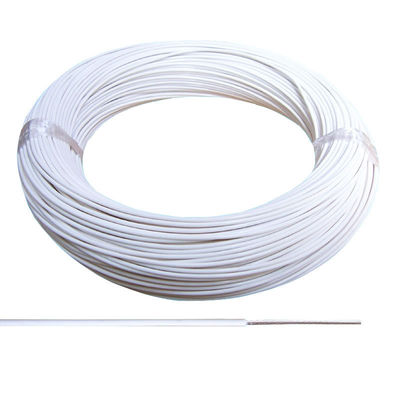

High Temperature Ultra Thin PTFE Hook Up Wire
Applications
PTFE Wire is used for:
- Oil equipment
- Electric machinery
- Automotive cables
- Outdoor lighting
- PTC thermistors
- Electric components
PTFE Cable can be used in:
- Temperature compensating wire
- Low temperature-resist wire
- High temperature heat wire
- Aging-resistance wire
- Fire-resist wire
- Household appliances (air-conditioning, microwave ovens, electric cookers, heaters, ovens, lamps, etc.)
Product Features
- Excellent corrosion resistance
- Oil, acid, alkali, and oxidant resistance
- Superior electrical insulation capability
- High voltage and moisture resistance
- Flame-retardant and anti-aging properties
- Long service life
Cable Specifications
| Specification |
Details |
| Conductor Materials |
Silver Plated Copper or Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~4mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+250ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Types and Names
| Type |
Name |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Technical Specifications
| Wire gauge |
Cross-section area (mm) |
Conductor structure |
Max resistance at 20℃ (Ω/KM) |
Max OD of wire (mm) |
Reference weight (kg/km) |
| 36AWG |
0.012 |
7/0.05 |
1450 |
0.85 |
0.98 |
| 32AWG |
0.035 |
7/0.08 |
580 |
0.95 |
1.37 |
| 30AWG |
0.05 |
7/0.10 |
380 |
1.05 |
1.67 |
| 28AWG |
0.07 |
7/0.12 |
260 |
1.1 |
2.02 |
| - |
0.1 |
7/0.14 |
180 |
1.2 |
2.42 |
| 26AWG |
0.14 |
7/0.16 |
130 |
1.3 |
2.85 |
| 24AWG |
0.2 |
19/0.12 |
84.5 |
1.4 |
3.85 |
| - |
0.3 |
19/0.14 |
61 |
1.48 |
5.65 |
| 22AWG |
0.35/0.40 |
19/0.16 |
49.5 |
1.6 |
5.74 |
| - |
0.5 |
19/0.18 |
37.1 |
1.8 |
7.39 |
| 20AWG |
0.6 |
19/0.20 |
30.1 |
1.98 |
10.7 |
| - |
0.75/0.80 |
19/0.23 |
22.7 |
2.1 |
10.9 |
| 18AWG |
1 |
19/0.26 |
19 |
2.2 |
13.3 |
| 16AWG |
1.2 |
19/0.28 |
15.3 |
2.4 |
15 |
| - |
1.5 |
19/0.32 |
11.7 |
2.6 |
19.7 |
| 14AWG |
2 |
19/0.37 |
9.45 |
2.9 |
25.2 |
| - |
2.5 |
37/0.30 |
7.4 |
3.6 |
33 |
| 12AWG |
3 |
37/0.32 |
6.03 |
3.5 |
36.9 |
| - |
4 |
37/0.37 |
5 |
3.9 |
47.5 |
| 10AWG |
5 |
37/0.41 |
4.1 |
4.37 |
47.5 |
| - |
6 |
49/0.39 |
3.3 |
5 |
70.1 |
Note: Extruded PTFE cable core number and specifications can be
customized.
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years of experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing for global customers.
Main Products
- High Temperature wires
- PTFE Wire
- FEP Wire
- PFA Wire
- ETFE Wire
- Fluoroplastic Cables
- Hook up wire
- Electronic cable
- Power cable
We have advanced production facilities and an integrated management system. We collaborate with universities and research institutes and can customize cables according to customer requirements.
Exhibition & Visit
In the past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India. Delegation from Ezeagu Government of Nigeria visited our factory in 2017 and became long-term partners.
Why Choose Us
Packing & Shipping
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
2. What is your company's strengths?
We are a stable wire and cable supplier of China's aerospace and military, with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive pricing for global customers.
3. How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement to manufacturing, semi-finished product testing, and finished product inspection to ensure product quality.
4. What's the warranty of your products?
We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
5. How can I get the samples?
We can make sample orders for you. If the sample quantity is small and available in our stock, we can provide them for free, but the freight should be paid by you.
